Friday, June 17, 2011

GSoC 2011 GUI Overhaul: Redesigned Admin Dashboard

Hi everyone,

As I promised from last post, I'll talk about redesigned admin dashboard in this post. Currently, admin dashboard is just a page with list, without any information, to other pages. I've provided mockup for admin dashboard with iconic information. There will be also new functionalities such as manage organizations with another sub functionalities to manage org, proposal, mentors, and students, participant locations, etc. There are two approaches to render child page in admin dashboard. These approaches is discussed in the following section :

Admin Dashboard with AHAH for Child Page

From last conference, Sverre told that Carol needs page in scope of admin should be stay on same page with parent page, that's admin dashboard. He said, it could be achieved with AJAX request/response. I tried the AJAX approach by making a div container to hold the HTML response. It's better to call this AHAH rather than AJAX. So, this div container is a hidden one and will be displayed after the HTML response injected to the container. The container was placed below the iconic information. To make the request handled with a minimum HTML responded, I created another blank template, base_ahah.html which contains following code :

{% block main_content %}
{% if ds_write_disabled %}
<div id=user-message class=error>
<strong>ALERT: </strong>Google Appengine datastore write
capability has been disabled at the moment. You will
<strong>NOT</strong> be able to save your changes at this
time. We are sorry for the inconvenience caused. Please visit
<a href=http://code.google.com/status/appengine>
http://code.google.com/status/appengine</a> to check
Appengine datastore status.
</div>
{% endif %}
{% block page_content %}
{{ tmpl.render }}
{% endblock page_content %}
{% endblock main_content %}

Page requested via AHAH must extends this template. We also need to modify form_base.html to check whether it was requested via AHAH or regular request with full base layout. If a page requested via AHAH, the JS code will add another query string, ?ahah=1. In the AHAH base template, we don't request any CSS or JS asset. I don't know if there's a way for LABjs loads once for the same script, and skip injecting the head for subsequent script calls. To be safe, any assets should be provided first when admin dashboard page requested. The form submission should be changed with AJAX. This was easily done with jQuery.post function. Any response, either invalid or valid, will be injected again in the AHAH container. With this approach, any admin sub page that need to be added later must exclude the asset its needed to parent page, admin dashboard. This make any sub page coupled to its parent page, which is not good.

Admin Dashboard with Iframed Colorbox for Child Page

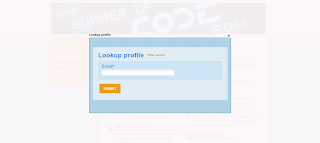

Colorbox is yet another thickbox-like jQuery plugin. Colorbox provides a way to hold the content of external page in iframed container. For iframed template we need to create another base layout again, say base_colorbox, with minimum markup and variabel template. In iframed container we could extend block stylesheet and add melange script dependencies. Here's what admin dashboard with colorbox looked alike :


Within iframe, we need to specify the width and height for colorbox. We can specify the width and height in URL query string. Colorbox approach seems the easy way to implement without coupling to the parent page.

In the next day I'll provide the live instance to experiment with the new dashboard, so stay tunned.

Tuesday, June 14, 2011

GSoC 2011 Integration with External APIs: OAuth Roundtrip - Week 3

I've been developing generic methods to handle OAuth. When developing software it's important to create meaningful abstractions so a method can refer to these abstractions without need to understand low-level details what they do. For the OAuth part of my project a helper module handles this low-level details and caller that refers to these abstractions is an access_checker. It asks following questions:

  • Get access token for user.
  • Create a service for user.
  • Generate a OAuth authorization URL.
  • Process URL for OAuth verifications.
Low-level helper module does following operations for questions above:

Get access token for user:
  • Generate a unique key consists of user's key and current host (different consumer key,secret so different services and access tokens are used for each hosts).
  • Ask memcache or a storage mechanism to fetch token corresponding to that key.
  • Return token.
  • If there isn't a token return None.
Create a service for user:
Service is a GDocsService object that is used to make API calls.
  • Create a service for the current host.
  • Set service's input parematers to host's consumer_key and consumer_secret.
  • Set encryption method to sha or rsa.
  • Return service.
Generate a OAuth authorization URL:
  • Fetch a request token.
  • Save request token's secret to memcache for later use (when validating token).
  • Generate a authorization URL from request token.
  • Return URL.
Process URL for OAuth verifications:
  • If request URL contains a verification key as GET parameter, parse it.
  • Verify previously stored access token with parsed verification key.
  • Store verified access token to memcache or datastore.

Monday, June 13, 2011

GSoC 2011 GUI Overhaul: Toggleable List

Hi everyone,

Today I'll talk about toggleable list for regular dashboard. To make you clear, there are two dashboards in Melange, one is regular dashboard and the other one is admin dashboard. The regular dashboard is the page that we see if we clicking the "My Dashboard" link on the left sidebar menu, or if you visit the url at gsoc/dashboard/(host)/(program_name). The admin dashboard is available in the left sidebar menu as "Admin Dashboard" if you have a role as a host. If you're login with account that listed as an administrator of melange instance, you have access to that admin dashboard. Admin dashboard can be visited at gsoc/admin/(host)/(program_name)

Currently, regular dashboard is loading a bunch of list at one time. Each list, or called component in dashboard view, in regular dashboard is fetching a lot of entities from datastore in the background. Each role gets different components. If someone has a role both as a host and a mentor, Carol's case, then she gets much components. Too much component will reduce usability. User needs to scroll hardly if she/he looks for component at the bottom. Fetching all list at one time is inefficient too. I've provided three ideas with mockups to handle this problem, one is with tab, two is with iconic page (the same as admin dashboard that I'll talk in the next post) and the last is with toggleable button. Carol agreed with toggleable button. The reason for toggleable button is user can toggle which list/component she/he wants to show without leaving the dashboard page.


I've provided the patch to melange-soc-dev. The implementation is quite simple. To make a component toggleable we just set toggleable and collapse to True inside the context. The list template will check this variable. If we ignore toggleable and collapse then the list will be requested when loading the page. We can set a component toggleable but doesn't collapse at first load by set the toggleable to True and collapse to False. With this approach, other pages with list, such as accepted_orgs, wouldn't be affected. In the next post I'll talk about admin dashboard that being redesigned right now.

GSoC 2011 Melange Testing Project : CP W3

Hi,

For quite a long time I had been working on the online test runner and could not make it work on a live instance. As I had discussed it in my last blog post about my implementation that I intended to exploit some plugins of Nose to run the tests, it failed because of the reason that Nose uses some libraries which are restricted by GAE. So Leo asked me to take my other approach of discovering all the test modules in the tests directory and then make a suite of tests using the unittest.loadTestsFromName  method. I used the os.walk() built-in function to first list all the modules with their absolute paths and then changed the paths into a dotted notation so that these paths could be easily used by unittest.loadTestsFromName to load the tests. I have used a lot of code from the gaeunit source specifically which is related to the browser interface and the test runner. The test runner had to be modified so as to fit in with melange code. I also had to include the tests directory, gaetestbed, nose, webtest and  mox libraries in the app folder so that tests can easily use them when running on a live instance.
    The online test runner runs on my local development environment but it shows errors that are due to the bugs in the runner itself. Below is the video of the melange tests running on my local machine through the browser.

I have stopped working on the runner as of now. But in the end, I discovered that I have extended some of the features of gaeunit. It has been 2 years since gaeunit was last released, so I was planning to contact the gaeunit developers if I can develop for them.

     During the last week conference call, Sverre asked me to treat the online runner as a side project and concentrate on my testing project now. So, I have started working on my project and wrote the test for app.soc.logic.accounts and submitted it for review. At the time of writing this post, I have also almost completed the test for app.soc.logic.dicts with a few methods left to test.
